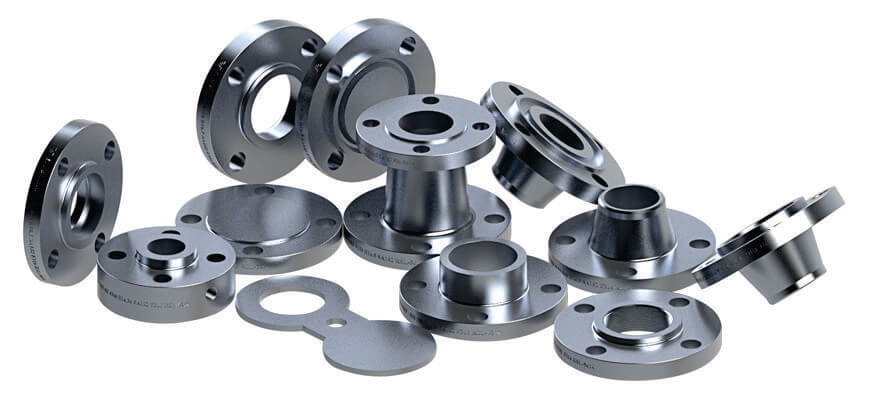

Flanges

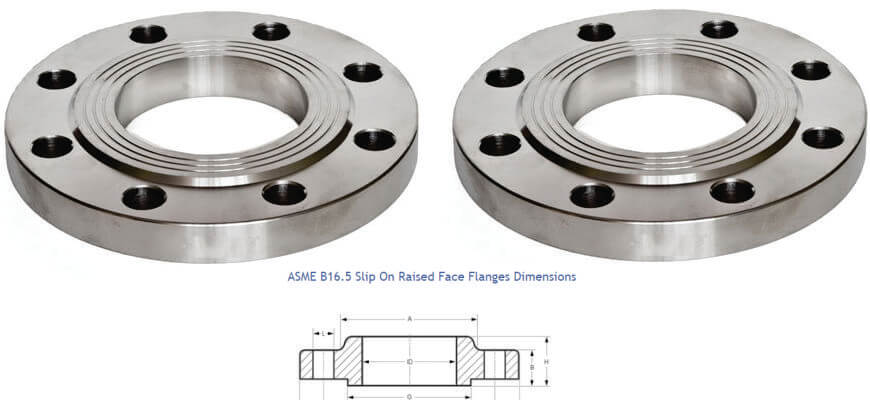

SLIP- ON RAISED FACE FLANGES (SORF)

We are one of the leading manufacturers, Supplier of High Quality Slip On Raised Face Flanges. These SORF Flanges are made using premium quality materials. These Flanges is available in various size, grades, Specification & thickness as per the clents requirments. These Flanges are attached to the pipe by fillet welding at the hub and at the end of the pipe inside the flange. Slip- on flanges are available with raised, flat or RTJ faces, and are also available in orifice configuration. These are easily fitted and welded into different pipes. We provide these flanges at market leading rates.

• Size :- History of Brooklyn
• Class :- 150 LBS, 300 LBS
• Standards :- ANSI B16.5
• Flange Face Type :- Flat Face (FF), Raised Face (RF)
• Coating/Surface Treatment :- Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Flat Face Flanges Manufacturers, Suppliers in India

The Flat Face (FF) flange has a gasket surface in the same plane as the bolting circle face. Application using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting. Flat Face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. The is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of carbon steel flange.

Raised Face Flanges Manufacturers, Suppliers in India

The Raised Face (RF) type is the most applied flange face, and is easily to identified. It is referred to as a raised face because the gasket surfaces are raised above the bolting circle face.
